# Anti-Static PTFE Membrane Dust Collection Filter Cartridge

## Customization

Filter media and end cap materials can be customized to match specific working conditions. Pricing is negotiable upon configuration. For special requirements (high-temperature fiberglass media, stainless steel end caps, FKM gaskets, etc.), please inquire.

## Product Overview

Engineered for environments handling combustible and ultra-fine dusts, this anti-static PTFE membrane filter cartridge delivers high-efficiency surface filtration with integrated explosion-proof safety. Designed for lithium battery electrode material production and other combustible dust applications.

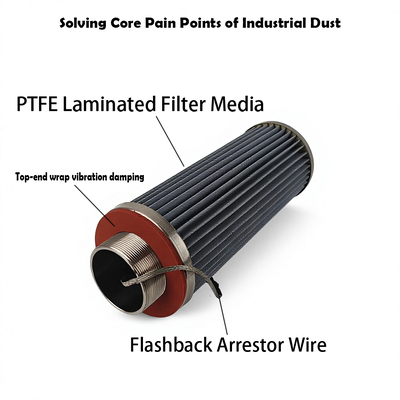

## Structure

**Filter Media**
Polyester filament substrate with thermally bonded PTFE microporous membrane. Conductive fibers are blended directly into the media, creating an intrinsic anti-static network. Surface filtration design keeps dust on the membrane surface — no deep embedding, thorough pulse-jet release.

**Frame**
Black metal mesh internal frame with lateral reinforcing rings and vertical corrugated support. Withstands negative pressure without collapse.

**Top Interface**
Stainless steel male thread connection with flange mount. A phenolic resin sealing gasket provides a rigid, temperature-resistant flange face seal — preventing dust-laden gas bypass at the mounting point.

**Base Cap**
Silver metal base cap, flush-sealed.

**Anti-Static Grounding**
A braided conductive wire is welded directly to the metal frame and routed to the equipment ground terminal. Triboelectric charges generated by high-velocity dust flow are dissipated instantly — no static accumulation, no spark discharge.

**Pleat Sealing**
Pleat ends are embedded into a sealed base, eliminating dust bypass at the filter element boundary.

## Key Performance

| Parameter | Specification |
|---|---|
| Filtration mechanism | PTFE membrane surface filtration |
| Membrane pore size | 0.1–0.3 μm |
| Filtration efficiency | ≥99.99% @ 0.3 μm |
| Anti-static | Conductive fiber blended media + grounded metal frame |
| Surface resistance | 10⁶–10⁸ Ω |
| Cleaning method | Pulse-jet reverse air |
| Top connection | Stainless steel male thread, flange mount |
| Gasket material | Phenolic resin |

## Applications

- **Lithium battery manufacturing**: cathode powder (LFP, NCM, LCO, LMO), anode powder (graphite, silicon-carbon) — batching, mixing, crushing, screening, packaging
- **Metal processing**: aluminum, magnesium, titanium powder; polishing, grinding, sandblasting
- **Chemical & pharmaceutical**: organic powders, APIs, pigments, flame retardants
- **Food & grain**: flour, starch, sugar, feed — combustible dust environments
- **Powder coating**: spray booth recovery, powder reclaim
- **Coal & carbon**: coal dust, coke, graphite
- **Cement & building materials**: cement, aggregate, glass production
