Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Name: Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation
Brand: Zhangjiagang Filterk Filtration Equipment Co.,Ltd
Price: 25.00 USD
Availability: InStock

Alle Produkte

Patronen-Filterelement
(53)

Öl-Nebel-Filterelement
(35)

Hydrauliköl-Filterelement
(54)

GasFilterelement
(34)

Luftfilter-Patrone
(31)

Coalescer-Filterelement
(9)

Gasturbine-Filter
(8)

industrieller Staubfilter
(21)

Luftkompressor-Filter
(17)

Vakuumpumpe-Filterelement
(9)

flüssiger Filter
(8)

Partikelluftfilter
(7)

Flachbildschirmfilter
(6)

ErsatzFilterelemente
(27)

gefaltete Filtertüten
(15)

Bescheinigung

China Zhangjiagang Filterk Filtration Equipment Co.,Ltd zertifizierungen

Kunden-Berichte

Die Technikfähigkeit ist sehr stark, bin ich mit der Qualität und dem Service von Hangzhou-Anmut sehr erfüllt.

—— Barbara Owens

FILTERK versieht mit unserer Firma für effektive Lösungen über Filter für die Staubschadstoffbegrenzung für unser Kohle fird Kessel baghouse System!

—— Steve Haselton

Ich bin online Chat Jetzt

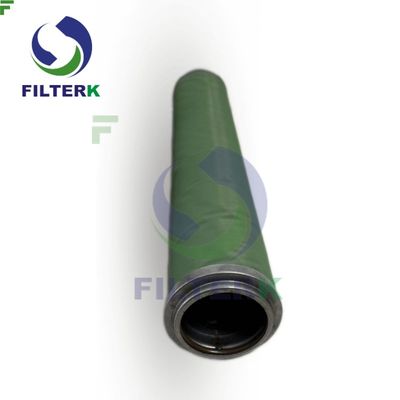

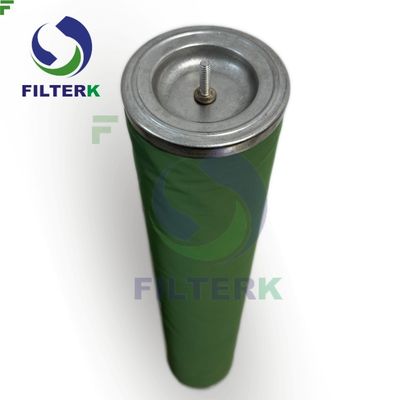

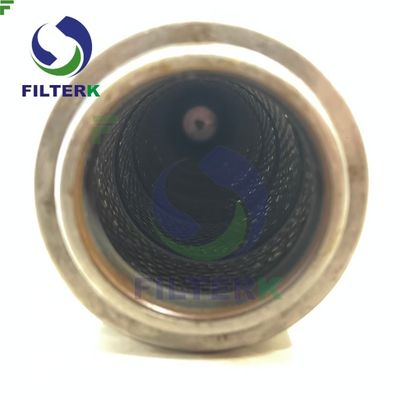

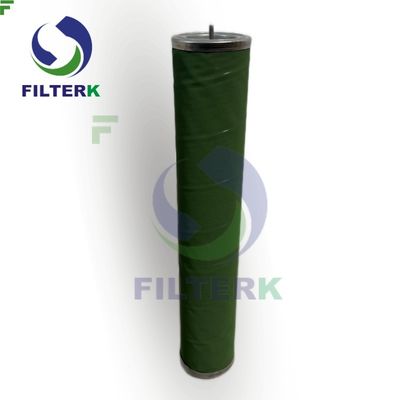

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Großes Bild : Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Produktdetails:

Herkunftsort:	Jiangsu, China
Markenname:	FILTERK

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$20-30

Kontakt

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Beschreibung

Filtrationseffizienz:	99%	Porosität:	0.3u
Gewicht:	0,8	Material:	Edelstahl
Außendurchmesser:	150	Innendurchmesser:	88
Höhenoptionen:	600, 800, 900, 1000, 1150	Betriebstemperatur:	5 ° C - 80 ° C.
Skelettmaterial:	Kohlenstoffstahl perforiert	Filtermaterial:	Teflon
Filtermaterialformular:	Gefaltet, verpackt	Betriebsdruck:	Bis zu 1,0 MPa
Maximale Temperatur:	80 ° C.	Min Temperatur:	-30 ° C.
Flüssige Aerosol -Effizienz:	99,9% für 0,01 μm und größer
Hervorheben:	99% Efficiency Coalescing Filter Element , 0.3u Porosity Cartridge Filter Element , Gas/Liquid Separation Stainless Steel Filter Element

Stainless Steel Coalescing Filter Element for Gas/Liquid Separation, Dehydration and Removal

Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration, and removal of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean, dry, and high-quality gas output.

Key Features

Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh environments.
Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high separation efficiency.
Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and purification.
Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.

Applications

Compressed air systems
Natural gas dehydration and purification
Biogas processing
Industrial gas pipelines
Pneumatic equipment protection

Specifications

Material: Stainless steel (housing and media support)
Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
Operating Temperature: -30°C to 80°C
Available in various sizes and micron ratings for custom needs.

Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized solutions!

Technical Parameters

Parameter	Details
Filter Element Size	Outer Diameter: 150 Inner Diameter: 88
Height	600, 800, 900, 1000, 1150
Operating Temperature	5°C - 80°C
Skeleton	Carbon Steel Perforated
Filter Material	Teflon
Filter Material Form	Pleated Wrapped
Performance Characteristics	Strong Hydrophobicity, Strong Oil Permeability Large Filter Area, Simple Structure, Easy to Install
