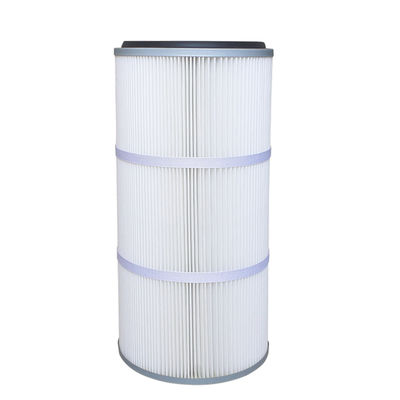

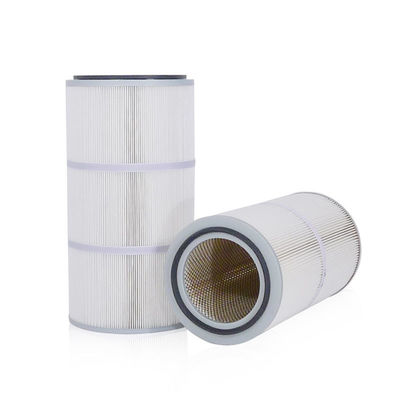

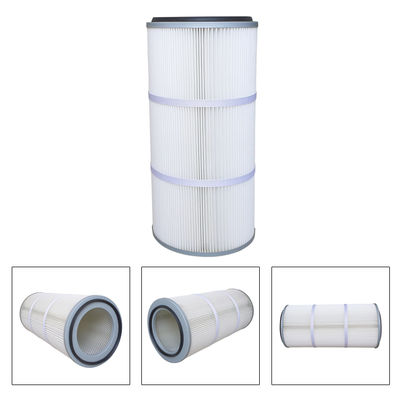

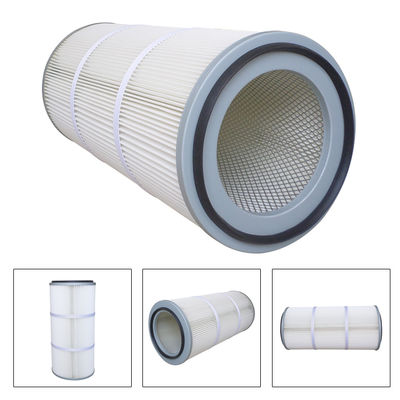

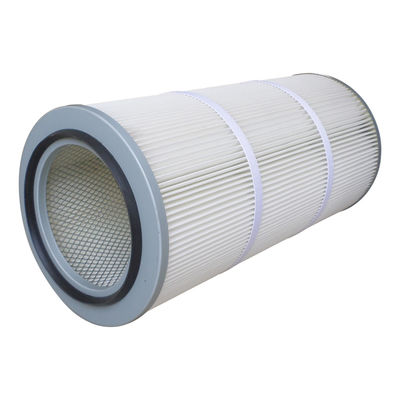

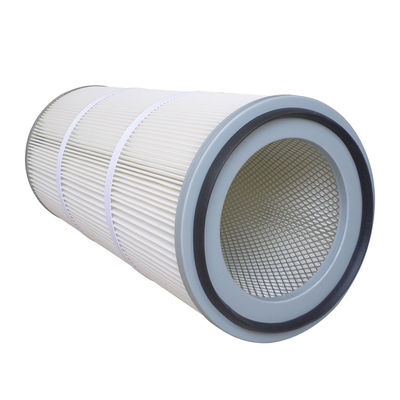

FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester

FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester
FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester

Großes Bild :  FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester

Produktdetails:
Herkunftsort: Jiangsu, China
Markenname: FILTERK Filter Dust CollectorC
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: $35-47.61
Kontakt

FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester

Beschreibung
Mindestpartikelgröße: 5 Mikron Außendurchmesser: 324 Millimeter
Innendurchmesser: 213 Millimeter Höhe: 660mm
Gewicht: 6 kg Filtermedien: Polyester
Filtrationseffizienz: 100% (Partikel ≥ 5 & mgr; m) Top -End -Kappen: Verzinktes Blatt
Unterkappe untere Endkappen: Verzinktes Blatt Innerer Kern: Galvanisierter Diamond Mesh
Dichtungsmaterial: Schäumen Gummi Betriebstemperatur: ≤ 135 ° C.
Struktur: Zylindrisch Konstruktion: Offen/mit Bolzenloch geschlossen
Schreiben von Breite: 0,5 mm
Hervorheben:

pleated cartridge filter 5 micron

,

polyester cartridge filter 324x213x660mm

,

cartridge filter element with warranty

FILTERK Pleated Cartridge Filter Element Dust Collector G3266 Spunbonded Polyester
Product Specifications
Attribute Value
Condition New
Minimum Particle Size 5 Micron
Dimensions (L×W×H) (OD)324 × (ID)213 × (H)660 mm
Weight 6 kg
Warranty 6 Months
Filter Dust Collector FILTERK Pleated Cartridge Filter Dust Collector
Application Dust Collector
Structure Cylindrical
Filter Media Polyester
Color White
Filtration Efficiency 100% (Particles larger than 5μm)
Top & Bottom End Caps Galvanized
Inner Core Galvanized diamond mesh
Size Can be customized
OEM Yes
Filter Media Details
  • Imported long fiber polyester filter media, fiber interwoven, evenly distributed
  • Filter material surface treated with waterproof and oil processing
  • Excellent abrasion resistance with superior capability to withstand airflow pulse inverse blow
  • Smooth filter media surface, non-sticky
  • Excellent chemical resistance
  • Good stiffness, can be repeatedly washed
Optional Filter Media
  • Spunbonded polyester
  • Polyester + Oil and water repellent
  • Polyester + PTFE Membrane (Coated by glue & Coated by heating)
  • Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic)
  • Polyester + Flame retardant
  • Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We select the most suitable filter media according to customer requirements.
Construction Details
End Caps & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel also available.
Gasket: Professional sealing obturator elastic neoprene.
Key Features
  • Operating temperature ≤ 135°C
  • Increased effective filtration area
  • Low steady differential pressure improves air flow circulation
  • Compact design for easy installation
  • Ideal for high dust concentration industries
Technical Specifications
Part # G3266
Structure Cylindrical Filter Element
Dimension (OD)324 × (ID)213 × (H)660 mm
Filter Material Polyester
Efficiency 100% (Particles ≥5μm)
End Caps Galvanized sheet
Inner Mesh Galvanized diamond mesh
Gasket Foam Rubber
Construction Open/Closed with bolt hole
Ordering Information
MOQ No minimum order quantity. Recommended full container for cost savings:
20GP FCL: 306 sets
40GP FCL: 612 sets
40HQ FCL: 714 sets
Loading Port Shanghai
Lead Time Approximately 7 days for 20GP container
Payment T/T; West Union; Paypal
Shipment By sea to nearest port
By air to nearest airport
By express (DHL, UPS, FEDEX, TNT, EMS) to your door
Package Carton
Max Capacity Approximately 1000 pcs per week
Product Images
FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 0 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 1 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 2 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 3 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 4 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 5 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 6 FILTERK Pleated Cartridge Filter 324x213x660mm 5 Micron Polyester 7
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and 40 minutes from Wuxi Dong station by car. All clients are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is our priority. We maintain strict quality control from beginning to end. Our factory is ISO9001:2008 certified.
Contact Information
Lily Chen (Ms.)
Mob/Wechat/Whatsapp: +86-(0)-15262315039
